2nd-hand machines for Thermal Break Assembly

Are you looking for Thermal Break Machines to isolate and assemble your aluminium profiles?  Do you have a limited budget?  Have a look at which second-hand machines Aluro can offer you.

Aluroller Spain bis.JPG
Aluroller Spain.JPG

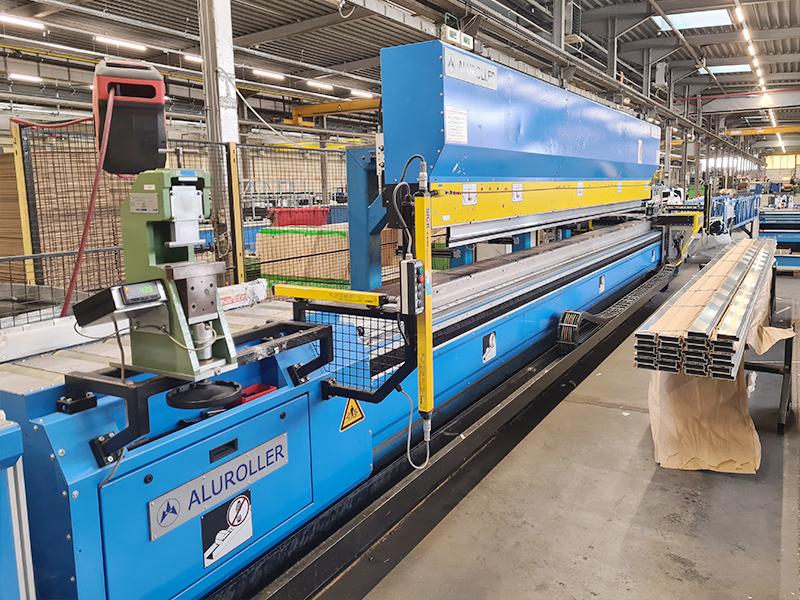

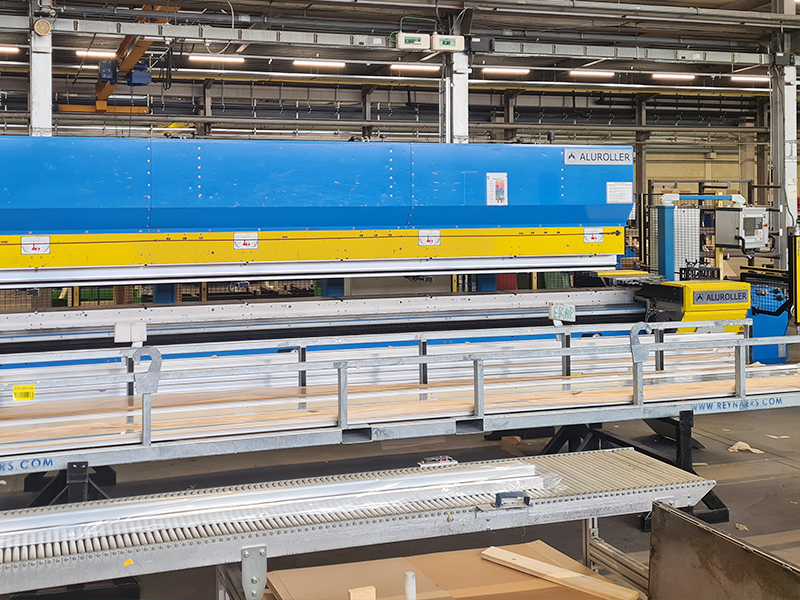

2nd-hand Aluroller in Spain

This Aluroller is offered by one of our customers in Spain.  It was installed in 2002 and has run for 15 years with 2 shifts per day, without any issues.  This machine is the perfect example of the impeccable quality of the Aluroller.

  • 3-in-1 technology for knurling, strip inserting and rolling (crimping)
  • 1 machine for 3 operations, requiring only 2 operators
  • Unique rolling (crimping) process to ensure straight profiles
  • Maintenance & Service reports can be provided by Aluro
Technical details
Year of construction 2002
Design

Robust industrial design

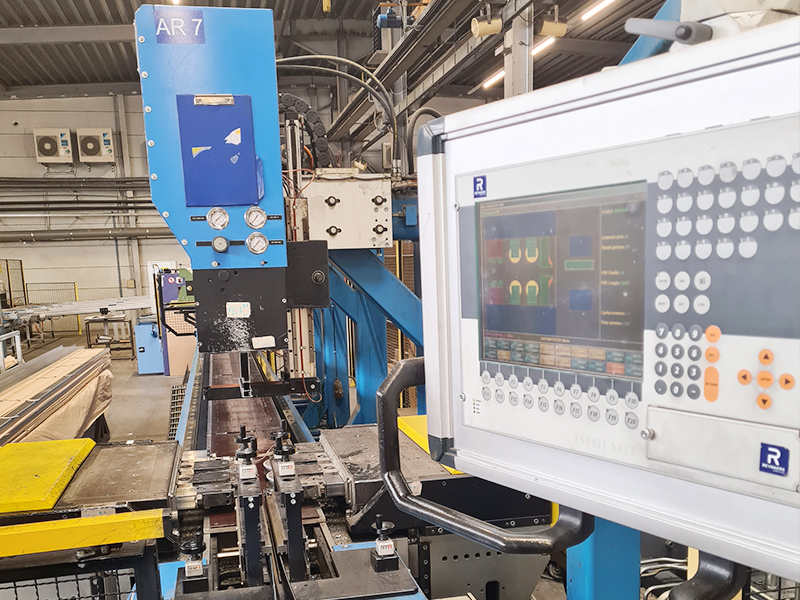

Operator console with touchscreen

Intuitive graphic controls

Dimensions (mm) L=11133; W=2500; H=3011
Weight +/- 16 tonnes
Electrical power requirements AC 25 kW/ 3phase + PE
Air supply ½  (min. 6 bar) max. 0,25 m³/min
Traverse rate

120 m/min

Diameter rolling discs Standard 100 mm
Pressure on discs From 0 to max 8000 N
Max. profile lenght 7000mm



SEE THE ALUROLLER EVO IN ACTION

3 operations are carried out with just 1 machine

Knurling, strip insertion and rolling (or crimping): the Aluroller EVO carries out 3 operations.  With just 1 machine, and only 2 operators.

More pictures at the bottom of this page

More pictures at the bottom of this page

Want to know more about this 2nd-hand Aluroller?

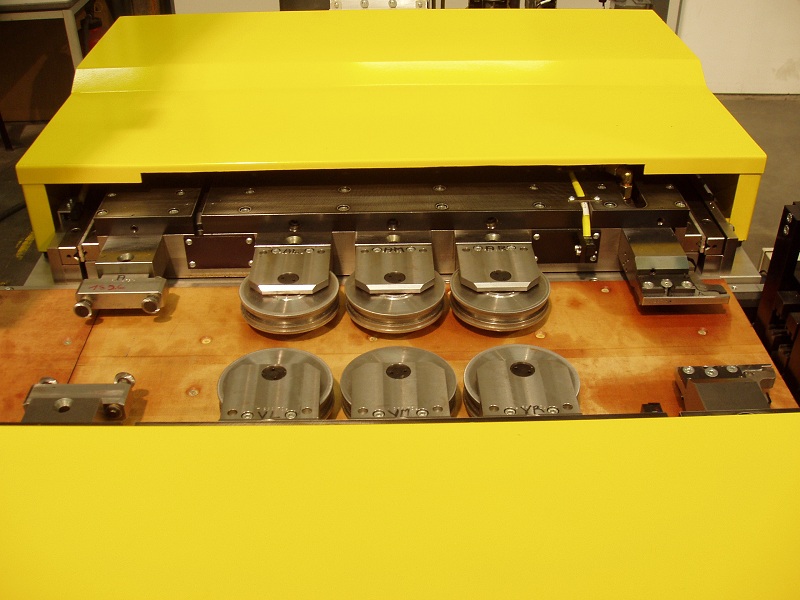

AR top angular view wagons with tooling 800px.jpg

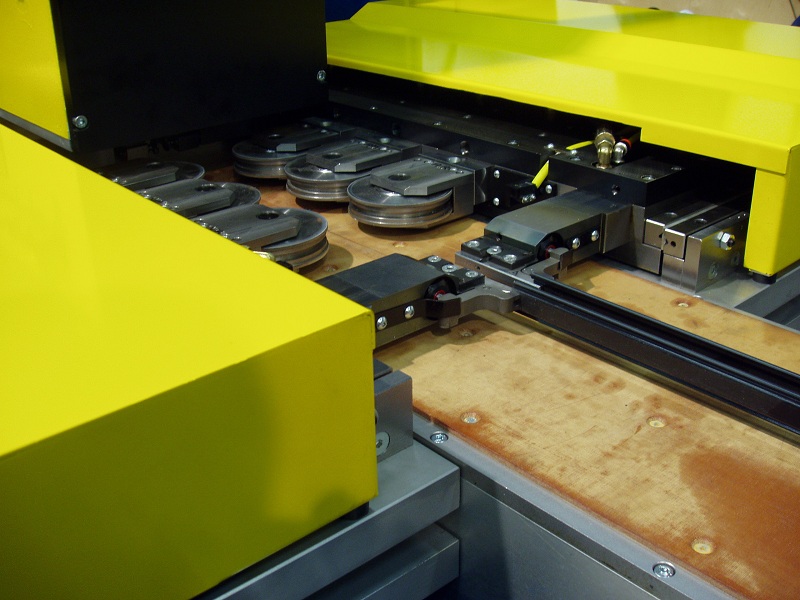

AR wagons in move with strips 800px bis.jpg

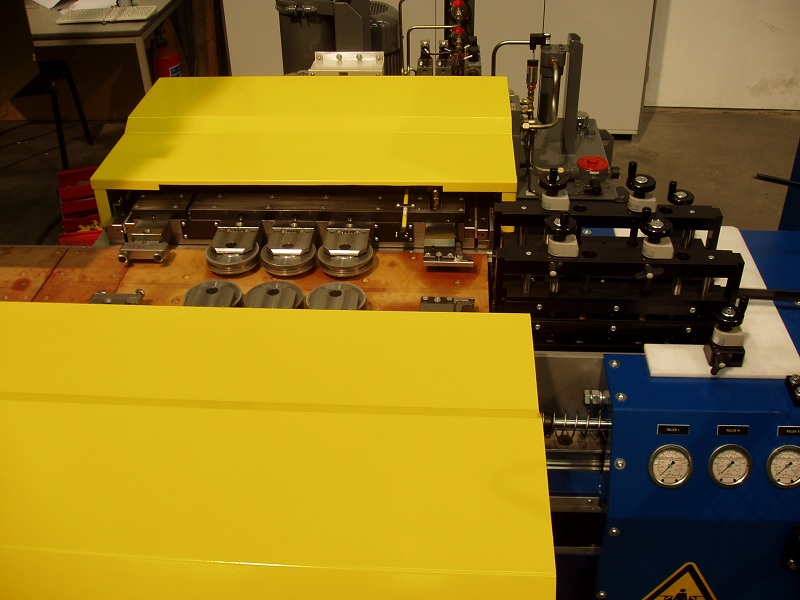

AR top angular view with tooling 800px.jpg

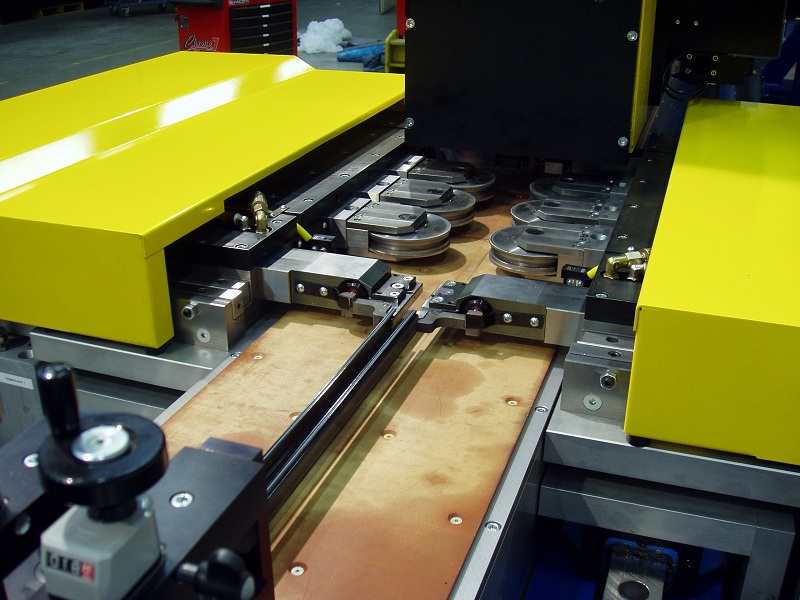

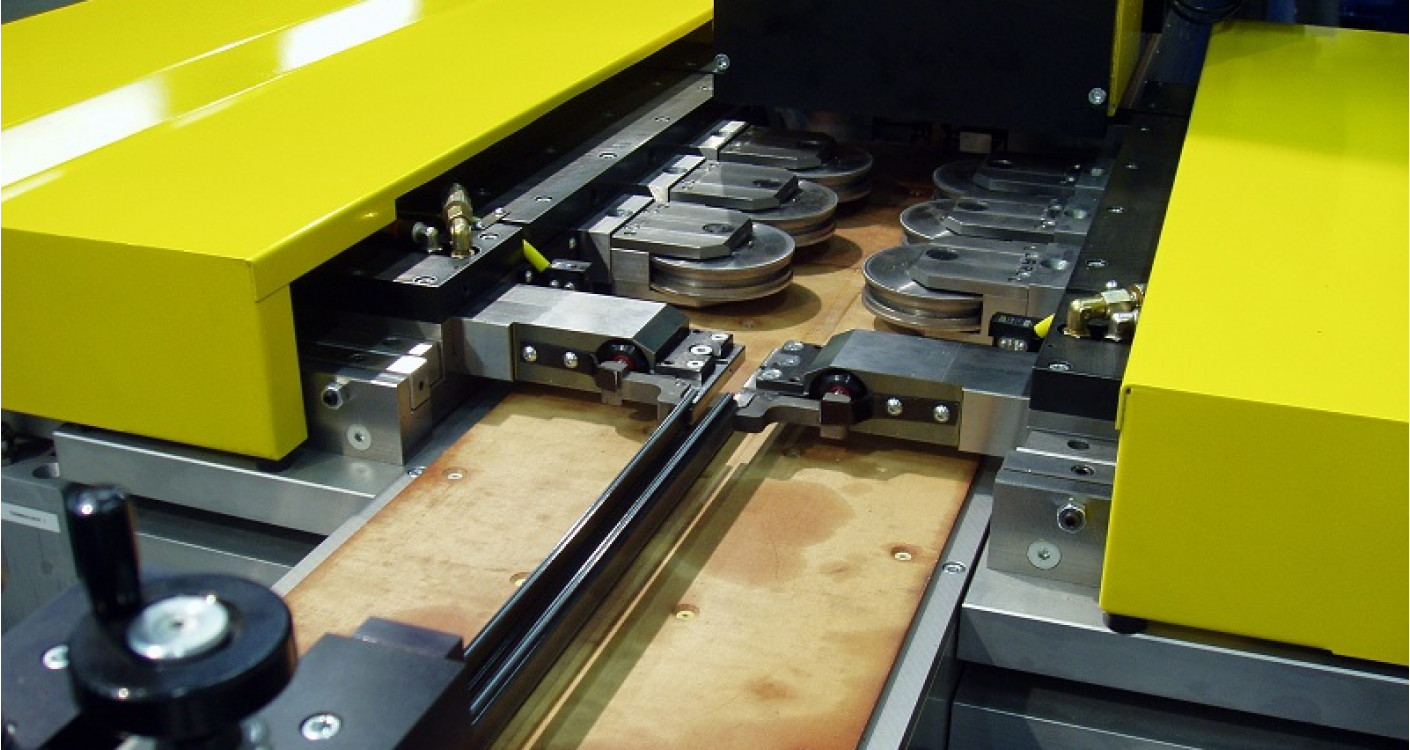

AR wagons in move with strips 800px.jpg
